Product Introduction:
A power trowel (also known as a "power float") is a piece of light construction equipment used by construction companies and contractors to apply a smooth finish to concrete slabs.
Principle:
The motor is decelerated by gears, and the trowel is driven by the output shaft. The trowel is compacted and smeared under the action of mechanical weight.
Features:

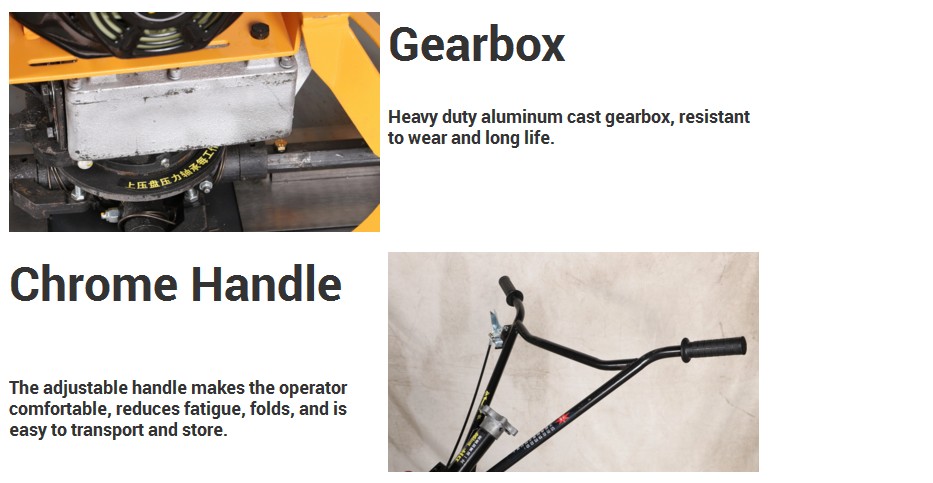

1) Over-built gearbox assures long service life
2) Heavy-weight design to assures a superior finish
3) Height adjustable handle, assures operator comfort & easy control
4) Lifting tube as standard feature allows trowel to be transported on the job-site with only two people
5) Centrifugal safety switch, shuts the engine down in the event of the operator loosing control of the unit
6) Screw control ensures precise blade adjustment
7) Throttle control is available as optional
8) Safety designed guard ring
9) Lifting hook is available as optional.
Parameter:
| Model | MT24-2 | MT24-3 | MT24-4 | MT24-5 |
| Engine | Air-cooled, 4-cycle, single cylinder | |||
| Engine Type | Chinese petrol Engine 200F | Robin EX17 | Honda GX160 | B&S I/C 1062 |
| Power kw(hp) | 4.8(6.5) | 4.2(5.7) | 4.0(5.5) | 3.7(5.0) |
| Operation Mass kg(lbs) | 63(139) | 62(137) | 63(139) | 63(139) |
| Guard Diameter cm(in) | 61(24) | |||
| Rotor Diameter cm(in) | 61(24) | |||
